I have a long list of tools that I have collected over the years through my 'adventures'.  I am going to keep an organized page here of all my tooling, and details/specs or not only my personal use/reference but for others as well.  These will be listed in no particular order, expect 'when thought of'.

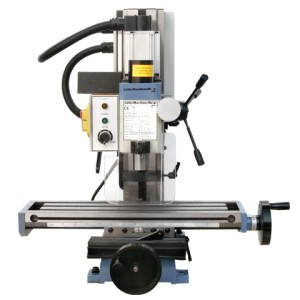

*Mill:  Little Machine Shop - HiTorque Mini Mill, Solid Column
480.3960
http://www.littlemachineshop.com/3960

Part Number: 3960
Weight: 176.00 lb
Price: $819.95

Specifications:

End Milling Capacity 0.6" (16 mm)
Face Milling Capacity 1.2" (30 mm)
Drilling Capacity 0.5" (13 mm)
Table Size 18.1" x 4.7" (460 mm x 120 mm)
T-slots 3 slots 0.47" (12.0 mm) wide
X-Axis Travel 11.8" (300 mm)
Y-Axis Travel 5.1" (130 mm)
Z-Axis Travel 9.8" (250 mm)
Throat 6.5" (165 mm)
X- and Y-Axis Feed Screws 0.062" (1.59 mm) per rotation
Head Tilt None
Positioning Accuracy 0.0004" (0.010 mm)
Spindle Taper R8
Spindle Motor 0.67 hp (500 Watts)
Spindle Speed 100 - 2500 RPM
Power Requirements 120 V 60 Hz 8 Amps
Machine Weight 124 lbs (56 kg)
Overall Dimensions (W x D x H) 23.2" x 19.7" x 29.1" (590 mm x 500 mm x 740 mm)
Crated Weight 161 lbs (73 kg)
Crate Dimensions (W x D x H) 23.6" x 23.6" x 29.9" (600 mm x 600 mm x 760 mm)

divider2

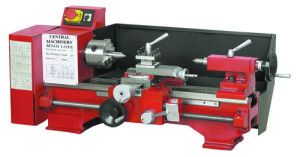

*Lathe: HarborFreight - 8" x 12" Precision Benchtop Lathe
hf8x12

http://www.harborfreight.com/8-inch-x-12-inch-precision-benchtop-lathe-44859.html

Part Number: #44859
Weight: 250 lb
Price: $999.99
Notes:  This is the same exact machine as sold my www.lathemaster.com but in RED. This lathe actually measures to be a 8x14 (not an 8x12).  This lathe does NOT have a variable speed controlled motor

Specifications:

Name 8" x 12" Precision Benchtop Lathe
SKU 44859
Brand Central Machinery
Color Red
Horsepower (hp) 3/4
Maximum speed (rpm) 2000
Minimum Speed (RPM) 125
Number of speeds 6
Spindle Taper MT3
Voltage (volts) 120

divider2

*Welder: Hobart Handler 125 115V Flux Cored/MIG-Ready Welder
hobart_125
Hobart Handler 125

Part Number: 500495
Weight: 55 lb
Price: $339
Notes: This welder has been converted with a regulator for MIG set-up using argon/co2 blended gas/tanks.

regulator_hobart_125

Specifications:

Volts 115
Amps 125
Duty Cycle 20% at 90A
Mig Ready Gas solenoid valve pre-installed
Wire Feed Speed Control Infinite
Weldable Metals Steel, stainless steel
Weld Thickness (in.) 18 ga.–3/16 in. steel
Clamp Cable Length (ft.) 8
Regulator and Gas Hose Included No
Shielding Gas Required For MIG Welding
Welding Wire Diameter (in.) 0.023–0.035
Power Cord (ft.) 6
Cart No
Dimensions L x W x H (in.) 10 x 12 x 17

divider2

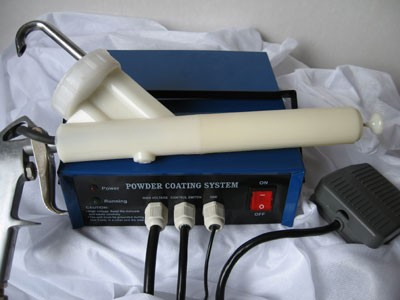

*Powder Coating System: HV Powder Coating System

pc_system

Caswell Plating HV Powder Coating System

Part Number: PCHV
Weight: 55 lb
Price: $199
Notes: More power means:

  • Stronger powder attraction to the part
  • Powder coat larger parts more easily
  • Easier double and triple coats

Make voltage changes quickly and easily with the switch on the back of the unit. Voltage can vary between 30KV-50KV in 5KV intervals, giving you complete control over your coating operation. Lower the voltage to coat into recessed areas, and while coating smaller items.

Specifications:

  • 30 Day Limited Warranty
  • Input Voltage: 110volt 60HZ AC
  • Air Requirement: 15PSI @ 5 CFM
  • Variable Output Voltage: 30-50 KV DC
  • Manual Discharge
  • 2 x Powder Gun Cups
  • 3 x Conical Fan Spray Pattern tips
  • External High Voltage Power Supply
  • In line disposable filter
  • Foot switch
  • Ground Clip Cable
  • Free Technical Support

divider2

*Air Compressor: Craftsman 33-Gallon, 2-rhp, Vertical

craftsman_compressor

Craftsman Air Compressor

Part Number: 17662
Weight: 146 lb
Price: $389

Specifications:

Chassis:Wheel Number 2
Included with Item:Accessory Kit Yes
Materials & Finishes:Housing Steel
Model Number 00917662000
Motor-Engine:Horsepower 1.60 hp
MPN 17662
Product Overview:Item Weight 146.0 lbs.
Safety Enhancements:Ear Decibel Rating 78 decibels
SCFM Delivery:SCFM Delivery At 90 psi 4.9 SCFM
Tags Materials & Finishes:Housing:Steel
Tank:Compressor Tank Capacity 33 gal.
Tank:Compressor Tank Pump Style Oil Free
Tank:Compressor Tank Type Vertical portable
Tank:Maximum Compressor psi 150 psi

divider2

*Abrasive Blaster: 40 Lb. Pressurized Abrasive Blaster

blaster

Abrasive Blaster (40lbs)

Part Number: 68992
Weight: n/a
Price: $99.00

Specifications:

Brand Central Pneumatic
Average air consumption 6 to 25
Material Steel
Maximum Operating PSI 125
Media capacity (lb.) 40 lbs.
Minimum operating PSI 60
Moisture seperator (y/n) Yes
Operating Pressure (PSI) 60 - 125
Recommended media Silicon Carbide, Aluminum Oxide, Glass Beads, Walnut Shells
Shut off valve Yes
Hose Length 8-1/2 ft.
Tire size (in.) 6 in.
Accessories Included Nozzle end shut-off valve, pressure gauge, auto closing nozzle, 0.076 in., 0.098 in., 0.118 in., 0.132 in. ceramic nozzles, 8-1/2 foot hose, filling funnel, water trap, 6" rubber wheels, and canvas hood
Warranty 90 Day

divider2

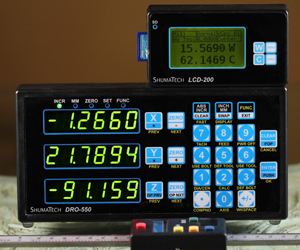

*DRO: Shumatec DRO 550 (DIY)

Shumatech DRO 550

Shumatech DRO 550

Part Number: n/a
Weight: n/a
Price: $150+ kit - $225+ complete
Notes: Shumatech Yahoo Groups: http://groups.yahoo.com/group/ShumaTech/



Specifications:

The hardware capabilities that the DRO-550 has in common with the DRO-350 + DPU-550 are:

  • 50MHz 32-bit ARM7 processor that runs the open-source OpenDRO software
  • Supports up to five Chinese (24 bit, BCD7, BIN6, and 21 bit formats) and quadrature digital scales
  • Six digit 7-segment LED display with auto-precision
  • Five mode indicator LEDs
  • Twenty-three key keypad matrix
  • USB and true RS-232 interface for programming and control
  • Dual edge finder inputs
  • Dual tachometer inputs
  • High current 5V power supply
  • JTAG debugging interface

Here is a link to my build log and pics of the kit and extra pieces:

http://www.dmstudios.net/?p=125
divider2

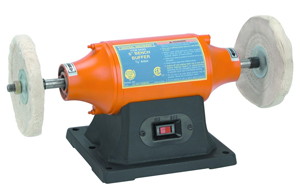

*Buffer:Harbor Freight 6" Buffer

Shumatech DRO 550

Harbor Freight 6" Buffer

Part Number: 94393
Weight: 16.9 lbs
Price: $39.99
Notes: Requires 'special order' replacement buffing wheels. One sold in store do NOT fit arbor, odd sized. HF cusotmer service/tech support is how you ened ot order. (will post sku #'s when I dig them up)



Specifications:

Brand Central Machinery
Amperage (amps) 1.6
Color Orange
Diameter 6 in.
Horsepower (hp) 1/2
Maximum speed (rpm) 3600
Voltage (volts) 120
Voltage type VAC
Product Height 7-1/2 in.
Product Weight 16.9 lbs.
Product Width 18 in.

divider2

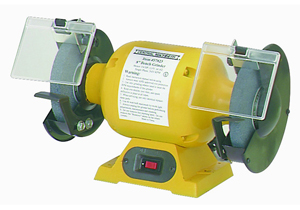

*Grinder:Harbor Freight 6" Grinder

Shumatech DRO 550

Harbor Freight 6" Grinder

Part Number: 39797
Weight: n/a
Price: $39.99
Notes: Requires different (green) wheels for carbide insert sharpening.
Specifications:

Brand Central Machinery
Amperage (amps) 2
Color Yellow
Diameter 6 in.
Horsepower (hp) 1/2
Voltage (volts) 115
Product Depth 14 in.
Product Height 10-1/2 in.
Product Width 14 in.

divider2

*Chop Saw: Harbor Freight 2 Horsepower 14" Industrial Cut-Off Saw

Chop Saw

Harbor Freight 2 Horsepower 14" Industrial Cut-Off Saw

Part Number: 91938
Weight: n/a
Price: $39.99

Specifications:

Brand Chicago Electric Power Tools
Amperage (amps) 15
Bench or Stationary Bench
Certification UL, CSA, ETL
Color Sliver
Diameter 14 in.
Maximum cutting thickness (in.) 4-1/4 in
Maximum speed (rpm) 3500
Switch type Trigger
Voltage (volts) 120
Arbor size 1 in.
Cord length 5 ft.
Table dimensions 25.5
Accessories Included Blade

divider2

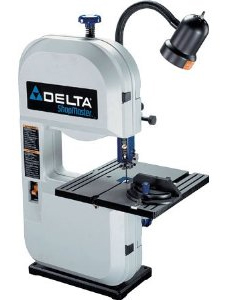

*Bandsaw: DELTA BS100 Shopmaster 9-Inch Bench Top Band Saw

bandsaw

DELTA BS100 Shopmaster 9-Inch Bench Top Band Saw

Part Number: 91938
Weight: n/a
Price: $39.99

Notes: Parts Manual: http://www.searspartsdirect.com/partsdirect/part-model/Delta-Parts/Saw-Parts/Model-BS100/1667/0744100/P0308179/00001?blt=06&prst=&shdMod=

Parts Manual II: http://www.searspartsdirect.com/partsdirect/part-model/Delta-Parts/Saw-Parts/Model-BS100/1667/0744100/P0308179/00002?blt=06&prst=&shdMod=

Specifications:

Motor ...1/3HP,120V,single phase, 60HZ
Motor Control.....Rocker on/off switch w/removeable lock-out key.


Table:
Size...............11-3/8" x 11-3/8"
Mitre gage slot..........1/4" x 5/8"
Tilt..........45 degree R, 3 degree L


Capacities
Frame to blade............9"
Under guide & wheel...........3-3/4"


Blade:
Width.........1/8" Minimum, 3/8" Maximum
Length........59-1/2"
Speed.........3000 SF/M (900 M/Min)
Dust port.....1-3/4" O.D.


Dimensions:
Length...........33"
Width............20"
Height...........29"
Weight...........33 lbs.
